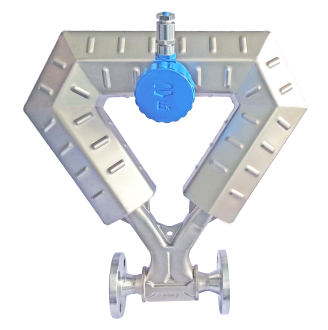

CG-25质量流量计







CG-25质量流量计











安装尺寸







技术参数



Model no.	CG-25
Mass accuracy grade	0.2
Max. flow rate	200 kg/min
Temp. accuracy	±1°C
Zero stability	0.017kg/min
Repeatability	0.25%
MWP	4MPa
Nominal diameter	25mm
End connection	Flange, customizable
Fluid temperature	-200~200°C
Wetted parts	Stainless steel 316L
Sensor housing	Stainless steel 304
RH	≤95%, non condensed
Loss of pressure	≤0.2MPa
Ex-proof grade	Ex[ib]IIBT1~T6 Gb / Ex[ib]IICT1~T6 Gb
Atmospheric Pressure	86~106 kPa
Operating voltage	AC85~265V, DC24
Communication port	RS485 Modbus RTU
Packing	1set/carton
Package size	690*670*410mm
G.W.	24.77kgs
Warranty	2 years
